TSIR-TP-25414

Material Type 材料类型:

TSIR-TP-25414 pads are thermally conductive pads designed to thermally connect electronic components to their heat sinks. The series pads exhibits exceptional thermal conductivity and fiberglass reinforcement for superior strength and hardness. This is flame retardant compliant to UL94 V-0 certification.
TSIR-TP-25414 垫片是旨在将电子元器件与其散热器进行热连接的导热垫片。该系列产品具有卓越的导热性，并采用玻璃纤维增强，从而具备优异的强度和硬度。符合UL94 V-0阻燃认证。

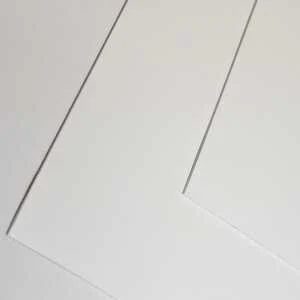

TSIR-TP-25414_2

Specifications (Technical Performance)



Hardness (Shore A):90 Shore A
Test Method: JIS K6249

Flammability: UL94 (V-0)
Thermal Conductivity: 7.3 W/m.K
Test Method: ISO 22007-2
Volume Resistivity: 10 ^ 15 Ω.m
Test Method: JIS K6249
Temp Range: -40°C to 180°C
Density/Specific Gravity: 1.50 g/cm³
Test Method: JIS K6249
Hardness (Shore A): 90 Shore A
Test Method: JIS K6249
Dielectric Constant: 3.1
Test Method: JIS K6249
Dielectric Strength: 40.0 kV/mm
Dielectric Breakdown Voltage: 12.0kV
Test Method: JIS K6249
Tear Strength: 223.0 kN/m
Test Method: JIS K6249
Tensile Strength: 49.0 MPa
Test Method: JIS K6249

规格（技术性能）

阻燃等级： UL94 (V-0)
导热系数： 7.3 W/m·K %
测试方法：ISO 22007-2
体积电阻率： 10 ^ 15 Ω.m
测试方法：ISO 22007-2
工作温度范围： -40°C 至 180°C
密度： 1.50 g/cm³
测试方法：JIS K6249
硬度： 90 Shore A
测试方法：JIS K6249
介电常数： 3.1
测试方法：JIS K6249
介电强度： 40.0 kV/mm
介电击穿电压： 12.0 kV
测试方法：JIS K6249
撕裂强度： 223.0 kN/m
测试方法：JIS K6249
拉伸强度： 49.0 MPa
测试方法：JIS K6249
