LSR

Material Type 材料类型: >

Liquid Silicone Rubber (LSR) is a high‑performance elastomer valued for its exceptional durability, flexibility, and resistance to extreme temperatures, chemicals, and environmental exposure. It is widely used in medical devices, automotive components, electronics, and consumer products due to its biocompatibility, chemical inertness, and ability to be precisely molded.
液体硅橡胶是一种高性能弹性体，因其卓越的耐久性、柔韧性以及耐极端温度、化学品和环境暴露的能力而备受推崇。由于其生物相容性、化学惰性和可精密成型的特点，广泛应用于医疗器械、汽车零部件、电子产品和消费品。

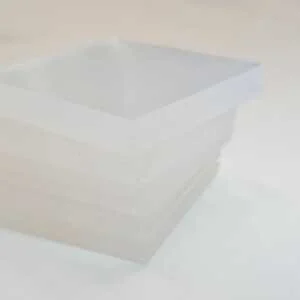

LSR_3

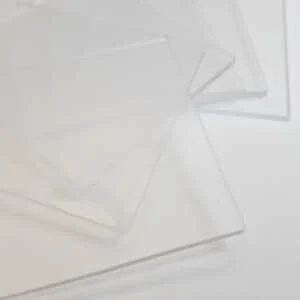

LSR_2

Specifications (Technical Performance)



Hardness: 20 – 80 shore A
Temp Resistance: -60°C to 230°C
Tensile Strength:  4-11 MPa
Elongation at Break:  150% – 700%
Tear Strength:  15–40 kN/m
Service Temperature:  –50 °C to +200 °C
Electrical Properties:  Excellent insulation
Volume resistivity:  ~10¹⁴ Ω·cm

规格（技术性能）



硬度： 20 – 80 Shore A
耐温范围： –60 °C 至 +230 °C
拉伸强度： 4 – 11 MPa
断裂伸长率：  150% – 700%
撕裂强度： 15 – 40 kN/m
使用温度范围： –50 °C 至 +200 °C
电气性能： 绝缘性能优异
体积电阻率： 约 10¹⁴ Ω·cm
