FPEC030-32801

Material Type 材料类型:

FPEC030-32801 is a closed cell, cross-linked polyethylene block foam manufactured using the brand's unique production process, nitrogen expansion manufacturing process. This affords an exclusive combination of beneficial characteristics - uniformity, purity, low toxicity and durability - that differentiates Zotefoams' materials from all other materials. FPEC030-32801 is a low density polyethylene (LDPE) foam.
FPEC030-32801 是一种闭孔、交联聚乙烯块状泡棉，采用该品牌独特的氮气发泡工艺生产。该工艺赋予了材料均匀性、高纯度、低毒性和耐用性等独特优势。FPEC030-32801 是一款低密度聚乙烯 (LDPE) 泡棉。

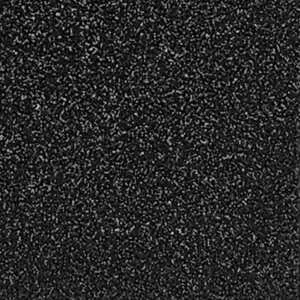

FPEC030-32801_2

Specifications (Technical Performance)

Temperature Resistance – Continuous: – 70 – 105 ˚C
Compression Set: 28% under 50% Compression, 72hrs, 23°C, 30min recovery
Test Method: ISO 1856
Compression Deflection: 112.0 kPa under 50% compression
Test Method: ISO 3386/1
Density/Specific Gravity
(Foam/Sponge):		 30.0 kg/m³
Test Method: ISO 845
Tensile Strength
(Foam/Sponge, Non-woven):		 430.0 kPa
Test Method: ISO 1798
Elongation: 130%
Test Method: ISO 1798
Test Strength: 625.0 N/m
Test Method: ISO 8067
Regulatory Compliance: FDA 177.1520

规格（技术性能）

温度范围： -70°C 至 105°C
压缩永久变形： 28%, 50%压缩，72小时，23°C，恢复30分钟后
测试方法：ISO 1856
压缩强度： 112.0 kPa, 50%压缩
测试方法：ISO 3386/1
密度/比重
（泡棉/海绵）：		 30.0 kg/m³
测试方法：ISO 845
拉伸强度
（泡沫/海绵，无纺布）：		 430.0 kPa
测试方法：ISO 1798
伸长率： 130%
测试方法：ISO 1798
撕裂强度： 625.0 N/m
测试方法：ISO 8067
符合标准： FDA 177.1520
